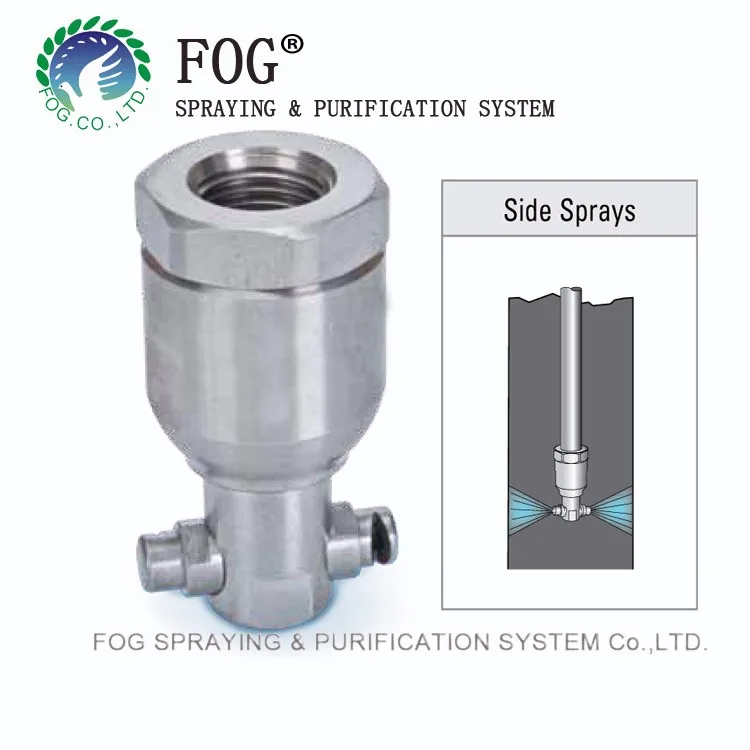

Tank cleaning nozzle , Flat fan tank washing nozzle

FOB Reference Price:Get Latest Price
$3.90 - $8.90 / Pieces | 10 Piece/Pieces (Min. Order)
Model Number:
2182-SS
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 500 Pieces)

More

Graphic customization (Min. Order: 500 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Construction works
Place of Origin:
Jiangsu, China
Brand Name:
FOG
Condition:
New
Thread Type:
BSPT / NPT or Bolt
Usage 1:
cleaning the tanks
Usage 2:
Large tanks rinsing and sterilization
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton/box
Port
Shanghai
Product Description
Brand Name
FOG
Place of Origin
Jiangsu, China (Mainland)
Port
Shanghai
Certificates
ISO 9001, ISO14001
Model Number
2182-SS
Material
Stainless Steel
Thread type
BSPT / NPT
Coverage
360 °
Max. Tank dia.
8’ (2.4 m)
Application
Tanks rinsing and sterilization

Specification

•  Max. tank dia. 8’ (2.4 m)
•  Flow rate range: 10.5 to 55 gpm (48 to 205 l/min)
•  Pressure range: 10 to 60 psi (1 to 4 bar)
•  Max. operating temperature: 350°F (177°C)
•  Min. tank opening size: 2-7/32” (60 mm)
•  Spray coverage: 360°
•  Inlet conn.: 3/4” nPT or BSPT (F)

Related Products


Spray coverage:180° to 360°;
Pressure range: 1 to 12 bar
Tank opening size: 26 mm (1-1/32"), 32 mm (1-1/4" ), 60 mm (2-7/32"), 64 to 102 mm (2.5" to 4" )
Inlet conn.: 1/2" to 3” (G/ BSPT/NPT)

Low pressure operation


Spray coverage: 180º,210º, 240º , 270º,360º

Pressure range: 1 to 10 bar

Tank opening size: 254 mm(10"), 152 mm(10"), 51 mm (2"),  19 to 25 mm (0.75" 1")

Inlet conn.: 3/4" to 3” (G/ BSPT/NPT)


Low pressure operation


Specification: Largest Free Passage, Maximum Free Passage

Spray angle: 30°, 60°, 90°,120°

Pressure: 0.2 bar to 5 bar

Material: SS, PP, CPVC, PVC, Brass

Customized manufacture is available

Quick connect nozzles

0 - 120°  degree spray angle

Clamp ball eyelet nozzles

Pipe clamp Quick connect

Spiral nozzle

Spiral spraying  Full cone

Water mist nozzles

Fine mist, fog spraying

Square nozzles

Square spraying

Tank Mixing Nozzle

Circulate liquids

Our Company

FOG Spraying & Purification Co., Ltd is professional manufacturer of Industrial Nozzles, Spray systems.
Factory direct price, Superior spray performance.
OEM Customized manufacture is available upon request. Best Spray solution to your application.
We guarantee Spray Angle tolerance ≤ 5 % Spray Capacity tolerance ≤5%
