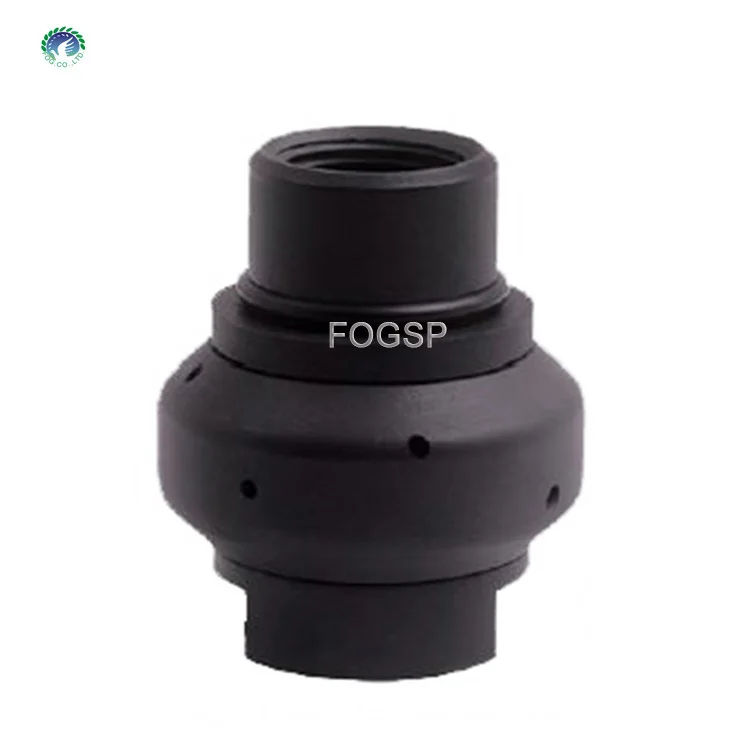

CIP systems High Impact Sanitary Chemicals Resistant Fluid Driven Tank Cleaning Nozzle

FOB Reference Price:Get Latest Price
$2.89 - $12.00 / Pieces | 10 Piece/Pieces (Min. Order)
Model Number:
28500
Customization:
Customized logo (Min. Order: 2000 Pieces)
Customized packaging (Min. Order: 2000 Pieces)

More

Graphic customization (Min. Order: 2000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Farms, Construction works , Energy & Mining
Place of Origin:
Jiangsu, China
Brand Name:
FOG
Condition:
New
Material:
Stainless Steel , PTFE
Thread Type:
BSPP/ BSPT / NPT or Bolt
Usage 1:
cleaning the tanks
Usage 2:
Large tanks rinsing and sterilization
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton/box
Port
Shanghai
Product Description
Brand Name
FOG
Place of Origin
Jiangsu, China (Mainland)
Port
Shanghai
Certificates
ISO 9001, ISO14001
Model Number
28500
Material
Stainless Steel, PTFE, Plastic
Thread type
BSPP/BSPT / Bolt
Inlet Dia.
3/4 to 3
Usage
Cleaning tanks
Application
Tanks rinsing and sterilization

1. Ideal for rinsing tanks, vessels, barrel in Dia. up to 5.5 meters (18 inches)

2. Threadless, tapered design promotes self-draining to prevent build-up on

3. Secured to inlet connection with 316 stainless steel locking pin
4. Conforms to 3A sanitary standard 78-01 for spray cleaning devices to remain in place (does not apply to 180° spraying up coverage)
5. Constructed of PTFE fluoropolymer resin – ideal for harsh cleaning chemicals
6.Flow Range : 34 to 384 l/min
7. Pressure Range : 0.7 to 3.5 Bar
8. Max. operating temperature: 93℃(200℉)
9. Min. tank opening size: 64 to 102 mm (2.5" to 4" ) depending on capacity size
10. Spray coverage: 180° up or down, 270° up or down and 360°

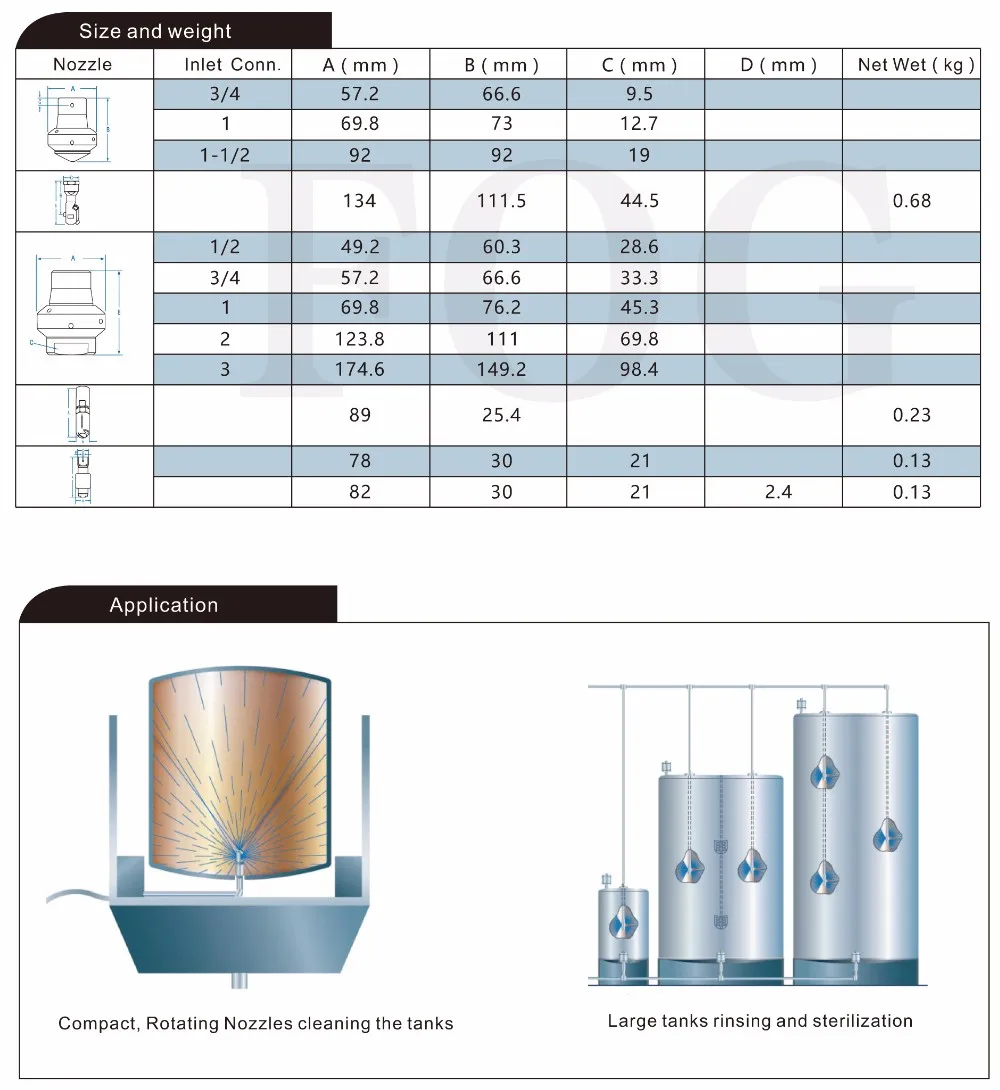

Detailed Images
Related Products


Spray coverage:180° to 360°;
Pressure range: 1 to 12 bar
Tank opening size: 26 mm (1-1/32"), 32 mm (1-1/4" ), 60 mm (2-7/32"), 64 to 102 mm (2.5" to 4" )
Inlet conn.: 1/2" to 3” (G/ BSPT/NPT)

Low pressure operation


Spray coverage: 180º,210º, 240º , 270º,360º

Pressure range: 1 to 10 bar

Tank opening size: 254 mm(10"), 152 mm(10"), 51 mm (2"),  19 to 25 mm (0.75" 1")

Inlet conn.: 3/4" to 3” (G/ BSPT/NPT)


Low pressure operation


Specification: Largest Free Passage, Maximum Free Passage

Spray angle: 30°, 60°, 90°,120°

Pressure: 0.2 bar to 5 bar

Material: SS, PP, CPVC, PVC, Brass

Customized manufacture is available

Quick connect nozzles

0 - 120°  degree spray angle

Clamp ball eyelet nozzles

Pipe clamp Quick connect

Spiral nozzle

Spiral spraying  Full cone

Water mist nozzles

Fine mist, fog spraying

Square nozzles

Square spraying

Tank Mixing Nozzle

Circulate liquids

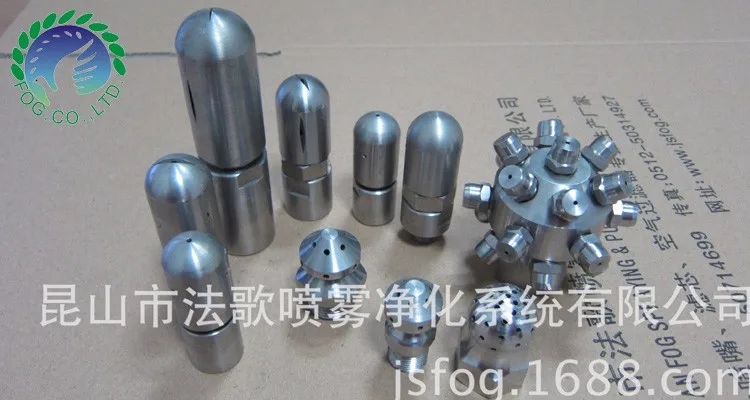

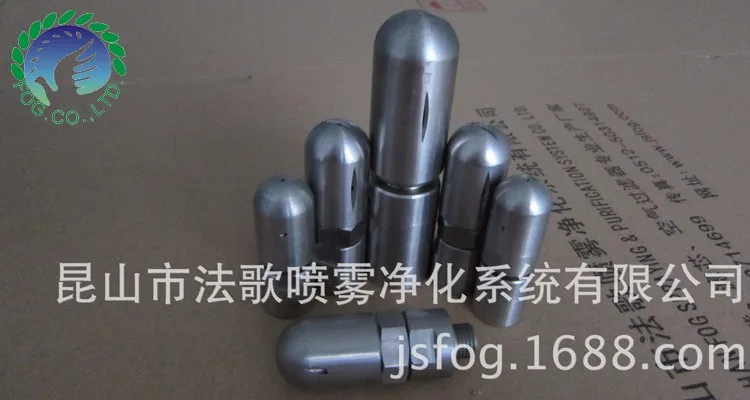

Products showcase
                                                                                                        Spray     Nozzle
                 Air Nozzle
              Spiral nozzle
Our Company

FOG Spraying & Purification Co., Ltd is professional manufacturer of Industrial Nozzles, Spray systems.
Factory direct price, Superior spray performance.
OEM Customized manufacture is available upon request. Best Spray solution to your application.
We guarantee Spray Angle tolerance ≤ 3 % Spray Capacity tolerance ≤3%
